MTX ZNXC1F picture

ZNXC1F

1 Farad 24V Ultra Fast Very High Quality Capacitor with distribution block voltmeter and supports

Introduction

The MTX ZNXC1F 1 Farad cap is certainly the best cap on the market. Its build quality (16 anode-cathode contacts) and ultra-low internal resistance are second to none. It increases the power of your amp by keeping the supply voltage at a maximum value. In addition, it is very useful with its integrated distribution block, digital voltmeter and mounting brackets.

Features

• High performance cap which keeps the power of the amps at their maximum
• 8 connections to the anode, 8 connections to the cathode for ultra-low internal resistance
• Ultra-low internal resistance (ESR <1mΩ) for charge and discharge at the speed of light
• Integrated distribution block 4x21mm²
• Ignition controlled by remote terminal
• Integrated voltmeter
• Controlled soft initial charge
• Reverse polarity protection
• Supplied with two transparent supports

Specifications

• Capacity 1 Farad
• Internal resistance ESR <1mΩ
• Dimensions: Ø75mm, height 240mm

Usage Tips

• The closer you install it to the amp, the more efficient it is. At 20cm it's a giant effect guaranteed
• Do not install it more than 50cm from the amplifier
• Very sensitive on the subwoofer amp, the one that takes the most current

Warning

MTX wants you to enjoy your hearing for a long time. Excessive exposure to loud volumes can damage your hearing. The United States Department of Labor recommends not exceeding the following recommendations:

  • 90db : maximum 8 hours / day
  • 92dB : maximum 6 hours / day
  • 95db : maximum 4 hours / day
  • 97db : maximum 3 hours / day
  • 100db : maximum 2 hours / day
  • 102db : maximum 90 minutes / day
  • 105db : maximum 60 minutes / day
  • 110db : maximum 30 minutes / day
  • 115db : maximum less than 15 minutes / day
  • 120db : immediate danger, 0 minutes / day

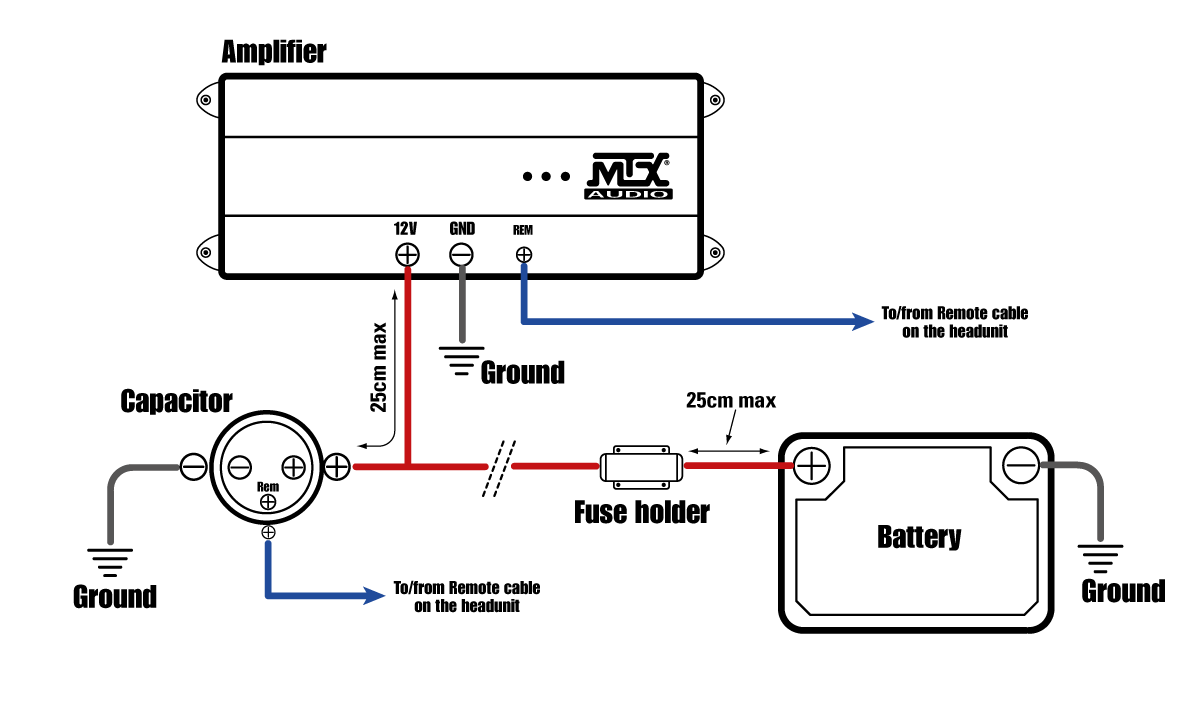

Connection Diagram


Picture Gallery
