TX612

30cm 12" 800W RMS 2Ω Subwoofer with Ø63mm 2.5" single voice coil and aluminum frame

Introduction

The 30cm 12" 800W RMS MTX TX612 subwoofer shines with its ability to transform a car into a concert hall or a nightclub, but also for its exceptional value for money. Its serious construction with aluminum frame, large suspension, large voice coil and superb fiberglass cone make it very efficient and competitive.

Features

  • High performance subwoofer
  • Aluminum frame
  • 2.5" high temperature voice coil
  • Voice coil with dual cooling system
  • Extra wide suspension for high excursion
  • High power handling
  • Very good value for money
  • Recommended amplifier: MTX TX6500D

Specifications

  • 30cm 12" subwoofer
  • Peak power: 2400W
  • RMS power: 800W
  • Sensitivity: 91.3dB/2.83V/1m
  • Impedance: 2Ω (single coil)
  • Coil diameter: 2.5"
  • BL factor: 16
  • Response: 20Hz - 500Hz
  • Depth: 14.2cm

Parameters

  • Fs : 27 Hz
  • Re : 2 Ω
  • Z : 2 Ω
  • Qms : 6,17
  • Qes : 0,42
  • Qts : 0,39
  • Vas : 42,7 liters
  • Prms : 800 Watts
  • Mms : 279,1grams
  • Cms : 0,120mm/N
  • Bl : 16 N/A
  • Sd : 500,5cm2
  • Xmax : 14mm
  • Vd : 0,701 liter
  • SPL 2,83V/1m : 91,3dB

Warning

MTX wants you to enjoy your hearing for a long time. Excessive exposure to loud volumes can damage your hearing. The United States Department of Labor recommends not exceeding the following recommendations:

  • 90db : maximum 8 hours / day
  • 92dB : maximum 6 hours / day
  • 95db : maximum 4 hours / day
  • 97db : maximum 3 hours / day
  • 100db : maximum 2 hours / day
  • 102db : maximum 90 minutes / day
  • 105db : maximum 60 minutes / day
  • 110db : maximum 30 minutes / day
  • 115db : maximum less than 15 minutes / day
  • 120db : immediate danger, 0 minutes / day

How to use the TX612

Recommended amplifier: MTX TX6500D


#1. One TX6500D amplifier connects perfectly with one TX612 subwoofer (2Ω)


#2. Two TX6500D amplifiers connect perfectly with two TX612 subwoofers (2Ω)

TX612 recommended enclosure


  • Vented Enclosure
  • Fb = 30Hz
  • Wood thickness = 25mm
  • External dimensions = 62.0x40.0x38.26cm

  • External volume = 94.9 liters
  • Net internal volume = 65.94 liters
  • Load volume = 56.0 liters

  • Number of vent = 1
  • Vent diameter = 100mm aeroport
  • Vent depth = 31.5cm

  •  Frequency response, cone displacement

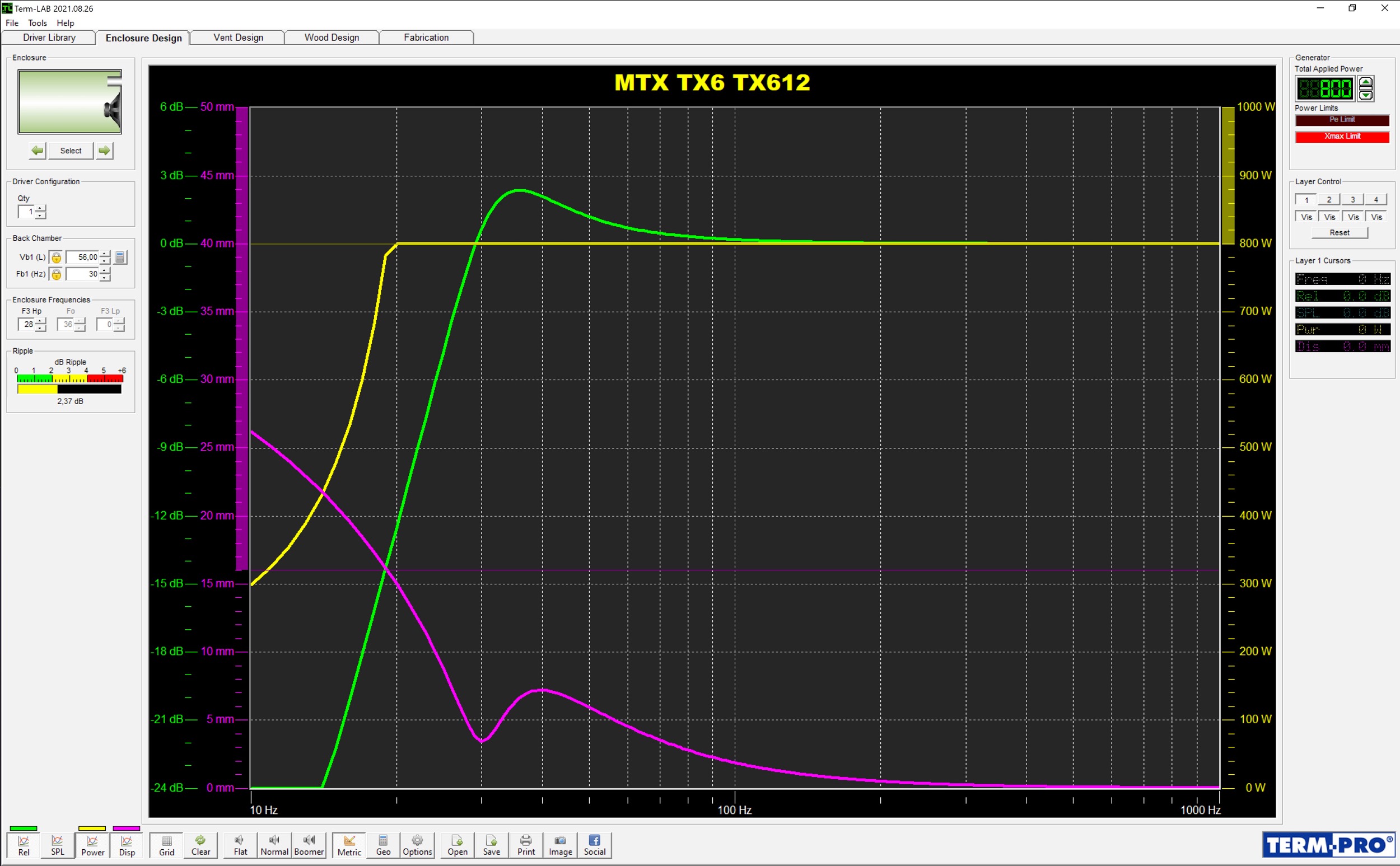

    Frequency response, cone displacement

  •  Vent(s) dimensions

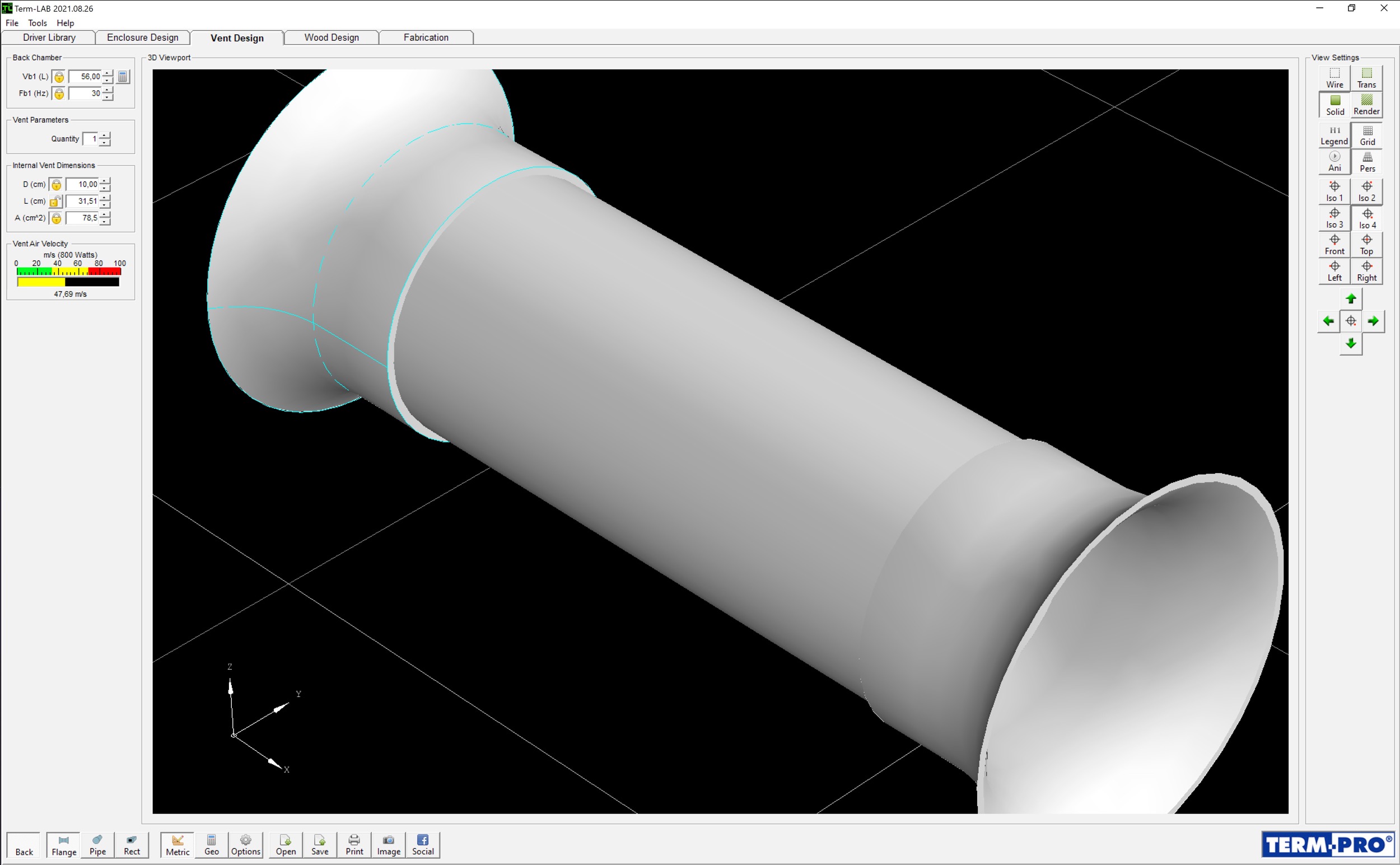

    Vent(s) dimensions

  •  Box dimensions

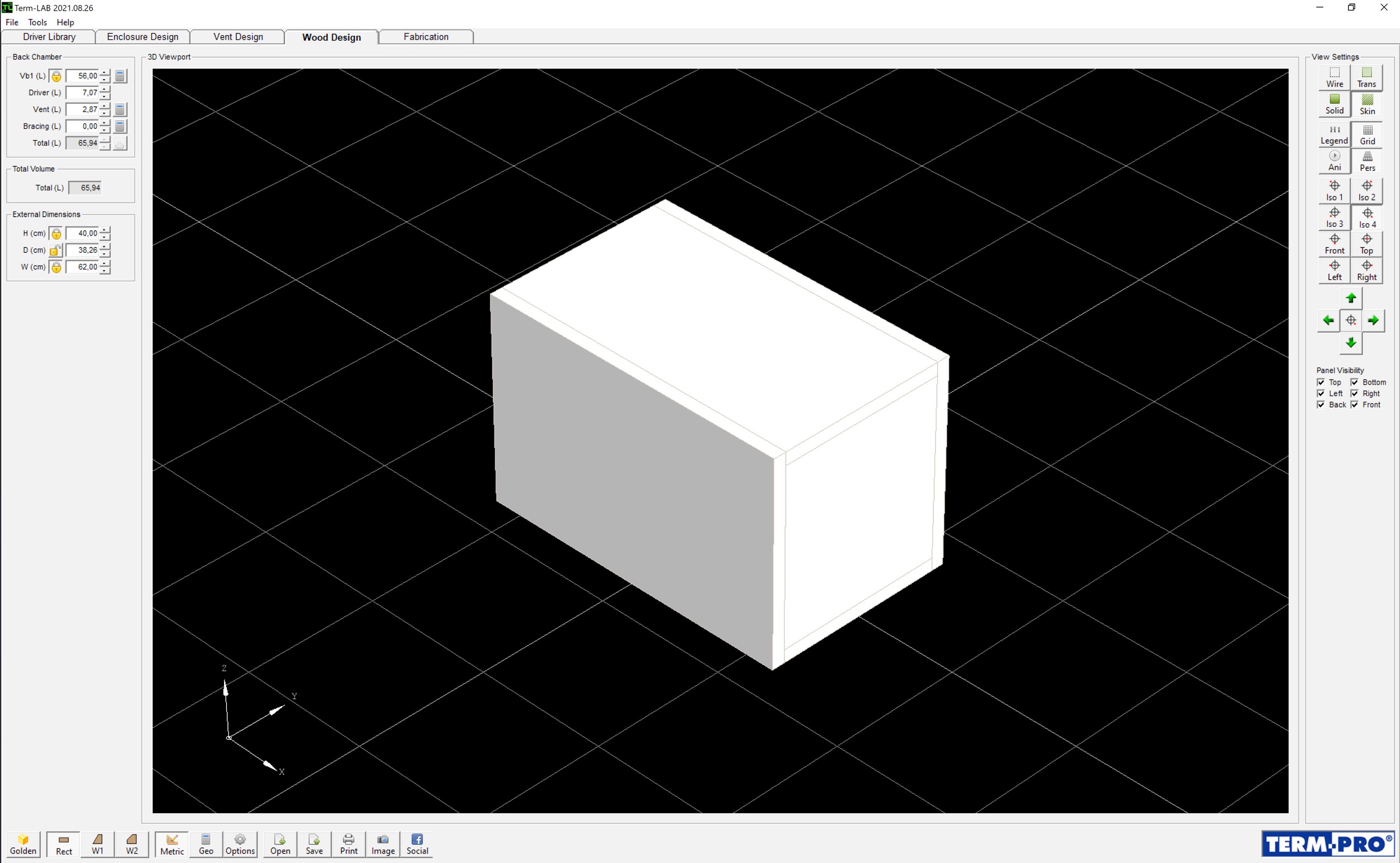

    Box dimensions

TX612 dimensions


TX612 picture gallery

TX612 downloads

What consumers say about the TX612...

Matthew H.

"The TX612 is sooo good for the money, I think it outperforms my old T7512, especially on the low notes - much more musical."
Le TX612 est une si bonne affaire, je pense qu'il surpasse mon ancien T7512, surtout sur les notes basses - Il est beaucoup plus musical.
