RT10-04

25cm (10") 250W RMS Subwoofer with 4Ω (2") Ø50mm single voice coil

Introduction

The 25cm (10") 250W RMS 4Ω single voice coil MTX RT10-04 subwoofer is full featured: long throw excursion, rubber suspension, polypropylene cone with embossed MTX logo, large magnetic structure, extra large 50mm (2") voice coil, SPV cooling technology, ALDS technology, etc. Considering the price, it's a feat.

Features

  • Long Throw suspension for low distortion and high power handling
  • One-piece cone with embossed MTX logo for the look
  • Thick sheet metal frame (1mm) for more rigidity
  • Large eXtra magnetic structure (130x25mm) for more power handling
  • 50mm (2") voice coil for more reliability
  • Wires braided in the spider for more reliability
  • Spider eXtra large for more Xmax
  • Push connectors for better contact
  • SPV technology for coil cooling
  • ALDS technology for reliability and for low level detail and high level power handling

Specifications

  • Diameter: 25cm (10")
  • Max power: 750W
  • RMS power: 250W
  • Sensitivity: 89.5dB/2.83v/1m
  • Impedance: 4Ω
  • Response: 24Hz - 500Hz
  • Depth: 12.6cm

Parameters

  • Fs : 32,0 Hz
  • Re : 3,10 Ω
  • Z : 4 Ω
  • Qms : 6,58
  • Qes : 0,53
  • Qts : 0,49
  • Vas : 32,58 liters
  • Mms : 128,91 grams
  • Cms : 176 mm/N
  • Bl : 12,56 N/A
  • Sd : 363,05 cm2
  • Vd : 0,381 liters
  • Xmax : 10,5 mm
  • Prms : 250 Watts
  • SPL 2,83V/1m : 89,5 dB

Warning

MTX wants you to enjoy your hearing for a long time. Excessive exposure to loud volumes can damage your hearing. The United States Department of Labor recommends not exceeding the following recommendations:

  • 90db : maximum 8 hours / day
  • 92dB : maximum 6 hours / day
  • 95db : maximum 4 hours / day
  • 97db : maximum 3 hours / day
  • 100db : maximum 2 hours / day
  • 102db : maximum 90 minutes / day
  • 105db : maximum 60 minutes / day
  • 110db : maximum 30 minutes / day
  • 115db : maximum less than 15 minutes / day
  • 120db : immediate danger, 0 minutes / day

How to use the RT10-04

Recommended amplifiers: MTX TX2275 TX2450 TX480D


#1. One TX2275 or TX2450 amplifier connect perfectly with one RT10-04 subwoofer (4Ω)


#2. One TX480D amplifier connects perfectly with one RT10-04 subwoofer (4Ω)


#3. One TX6500D amplifiers connects perfectly with two RT10-04 subwoofers (2Ω)


RT10-04 recommended enclosure


  • Vented Enclosure
  • Fb = 34Hz
  • Wood thickness = 25mm
  • External dimensions = 50.0x33.0x37.9cm

  • External volume = 62.5 liters
  • Net internal volume = 41,1 liters
  • Load volume = 36.0 liters

  • Number of vent = 1
  • Vent diameter = 75mm aeroport
  • Vent depth = 18.5cm

  •  Frequency response, cone displacement

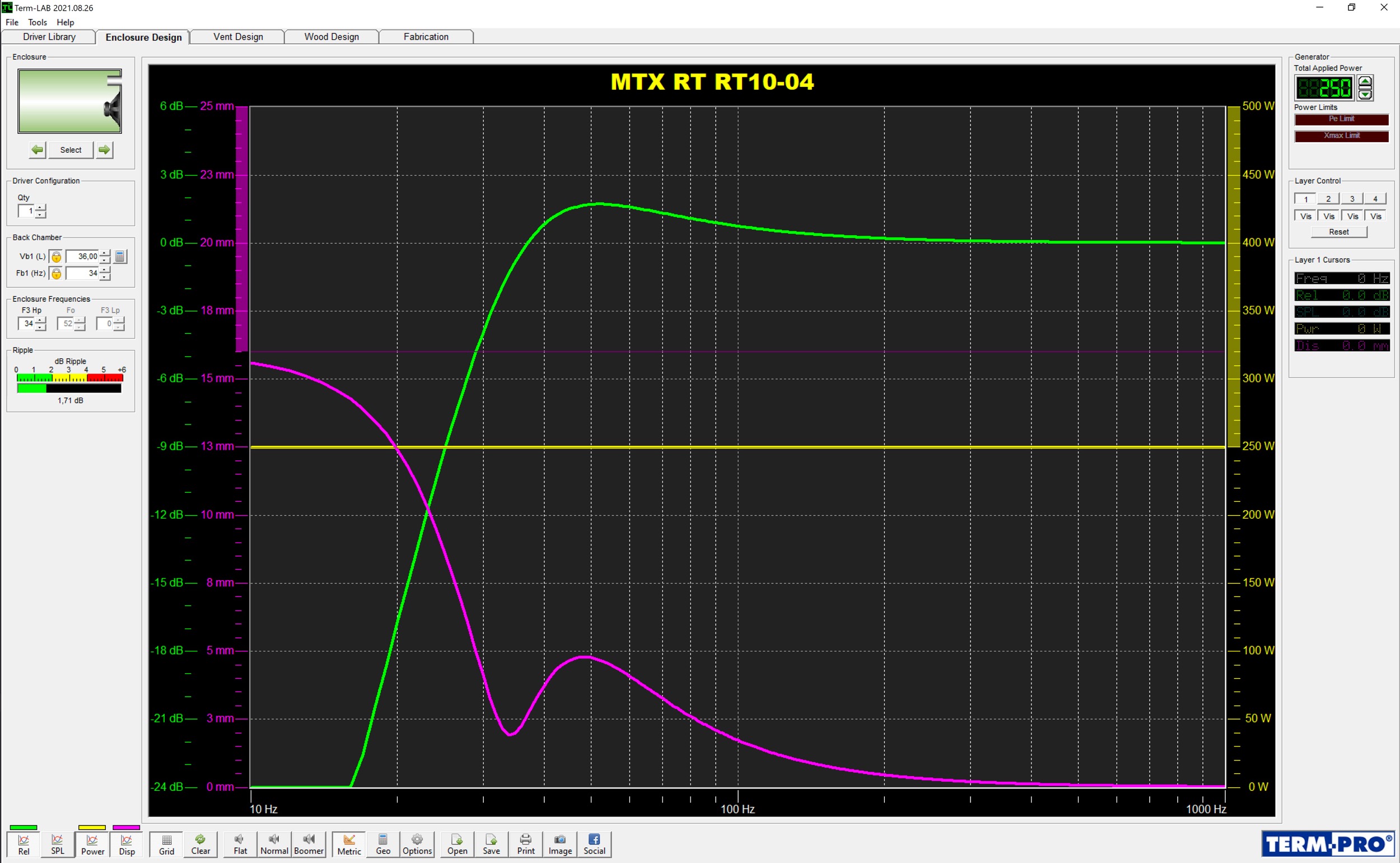

    Frequency response, cone displacement

  •  Vent(s) dimensions

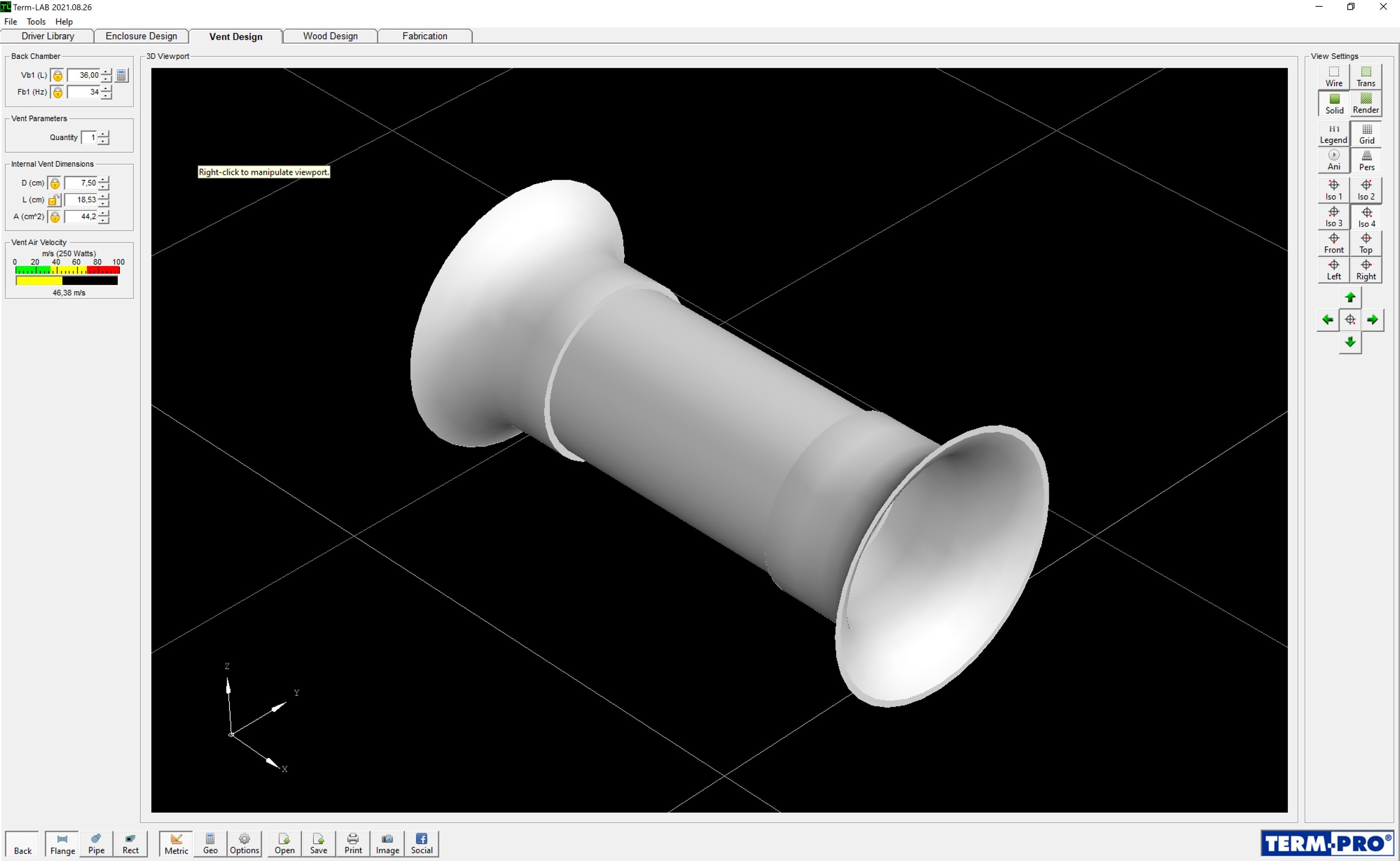

    Vent(s) dimensions

  •  Box dimensions

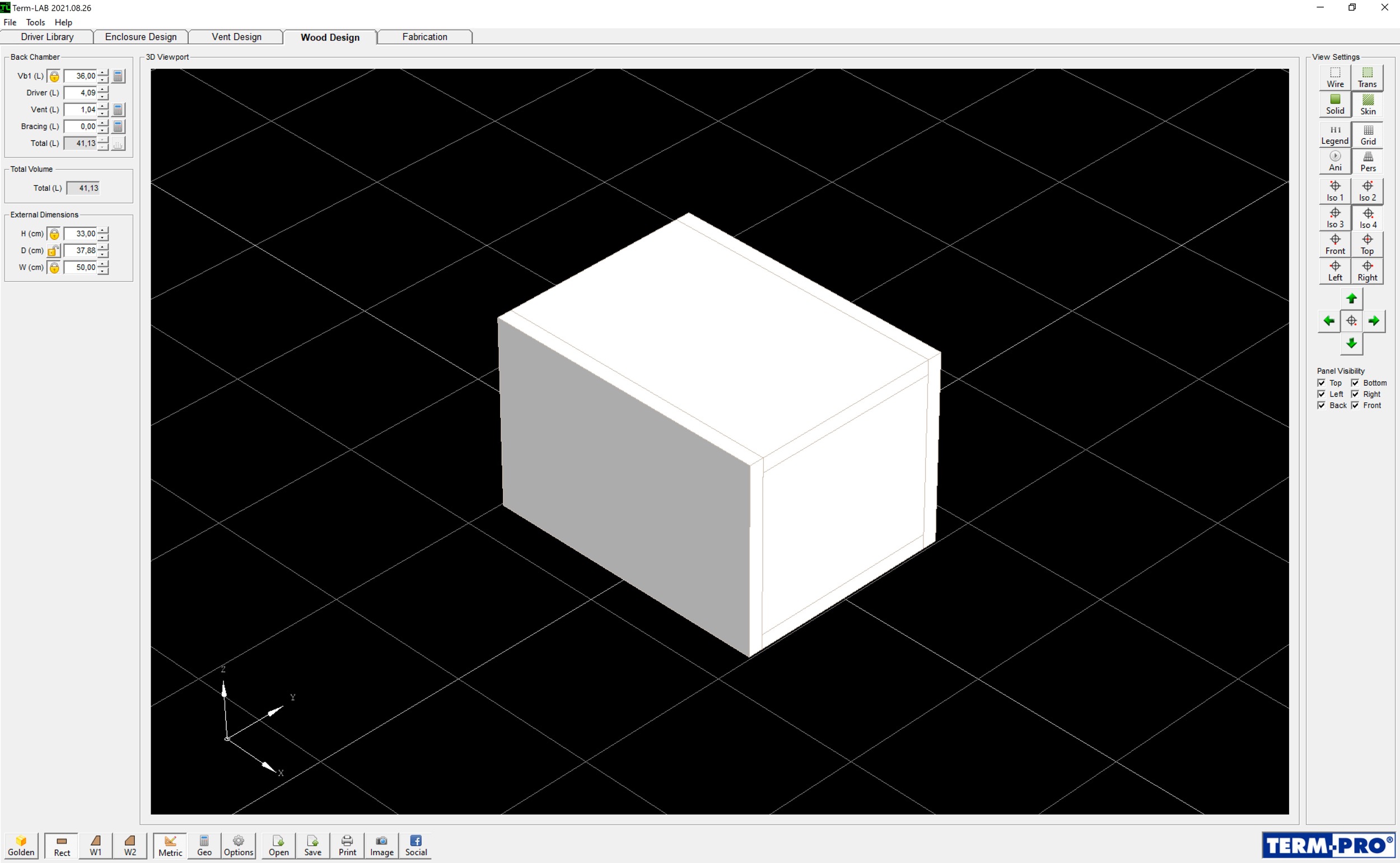

    Box dimensions

RT10-04 dimensions
