MTX TX465S picture

TX465S

TX4 Separate speakers Ø16,5cm 6.5" 2-way 80W RMS 4Ω with Ø25mm TSV TIL voice coil and Ø25mm silk dome neodymium tweeter

Introduction

The MTX TX465S speakers (16.5cm 80W RMS 320W Peak 4Ω 2-way kit) shine with their exceptional construction, sound quality, efficiency and ... the size of their magnet. They do an incredible job in the original locations of compatible vehicles. The softness and force with which they reproduce the best recordings is exceptional. The semi-pressed paper membrane covered with crystals and silver is musical and clear. The magnetic structure at the limit of the reasonable ensures an astounding dynamics and a power handling. The 25mm soft dome tweeter in silk and neodymium magnet is a delight. This last characteristic is rare at this price level… It is more often found on models twice as expensive.
They work perfectly on a car radio, but they are sublime if they are connected to an external amplifier like the MTX TX2450 or the TX2275 which are musical, powerful, dynamic and non-aggressive… To complete the picture, we can also, in a second time, add an active subwoofer such as the MTX RTP8, RTT8P or RTF10P… Music!

Features

• Treated paper cone coated with silver particles for a clearer midrange
• Extra large strontium magnet for better cone control and more power handling
• Aluminum phase plug to remove standing waves and improve the midrange quality
• 25mm aluminum voice coil for efficient cooling and more power handling
• Ø25mm high definition silk dome neodymium tweeter for more details
• External passive x-over with air coils and polypropylene caps and adjustable tweeter level
• Rubber suspension for more reliability
• Smooth, musical sound with precise and detailed bass
• Works perfectly on an original head-unit, and much better with the MTX TX2275 or the TX2450 amplifier

Specifications

• 2-way kit speakers
• Woofer diameter: 16.5cm 6.5"
• 25mm silk dome neodymium tweeter
• Peak power: 320W
• RMS power: 80W
• Sensitivity: 93.5dB / 2.83v / 1m
• Impedance: 4Ω
• Response: 45Hz - 25000Hz
• Woofer depth: 63mm
• Grilles included

Recommended efficient associations

TX480D TX2275 TX2450 amplifiers


• Amps: MTX TX2450 TR450 TX2275 TR275
• Bass enclosure: MTX RTP8, RTT8P, RTF10P, RTU8P

Warning

MTX wants you to enjoy your hearing for a long time. Excessive exposure to loud volumes can damage your hearing. The United States Department of Labor recommends not exceeding the following recommendations:
90db : maximum 8 hours / day
92dB : maximum 6 hours / day
95db : maximum 4 hours / day
97db : maximum 3 hours / day
100db : maximum 2 hours / day
102db : maximum 90 minutes / day
105db : maximum 60 minutes / day
110db : maximum 30 minutes / day
115db : maximum less than 15 minutes / day
120db : immediate danger, 0 minutes / day

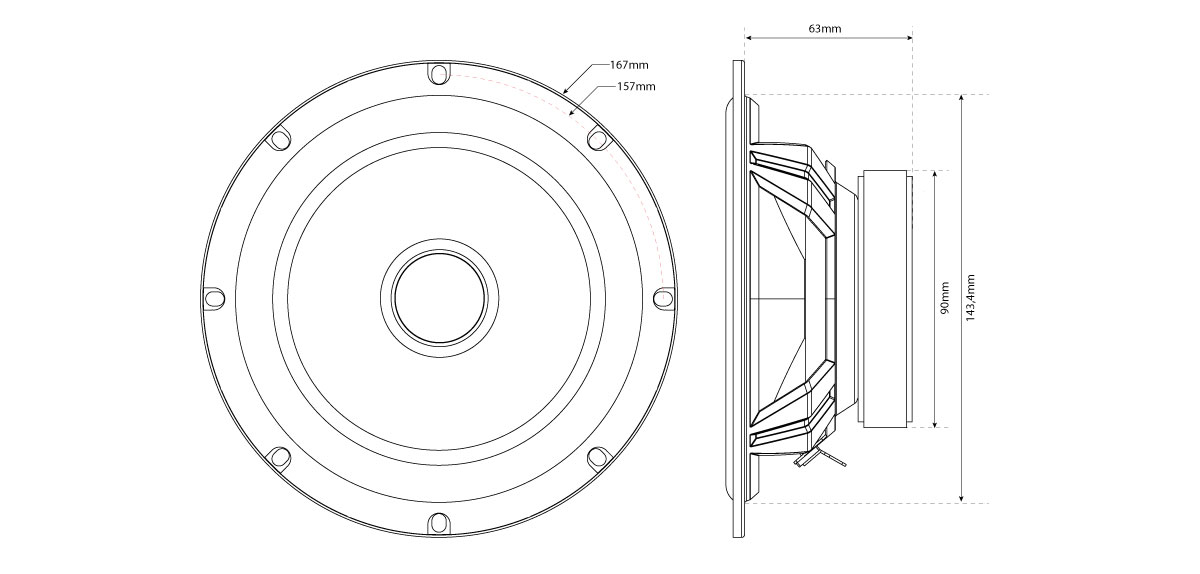

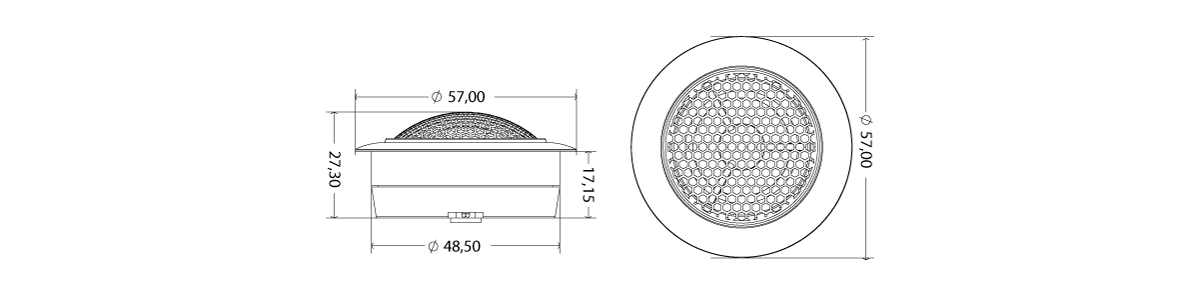

Dimensions


Picture Gallery

Downloads
