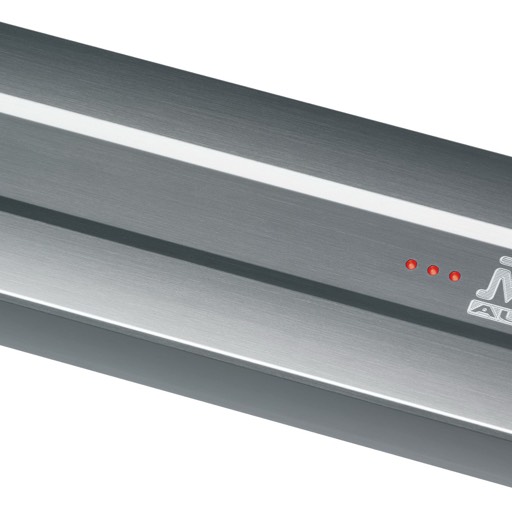

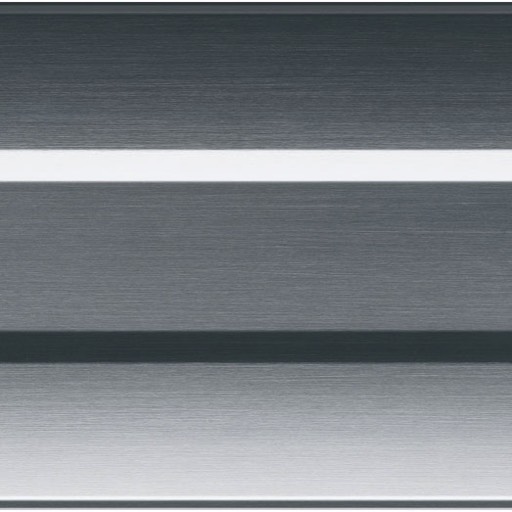

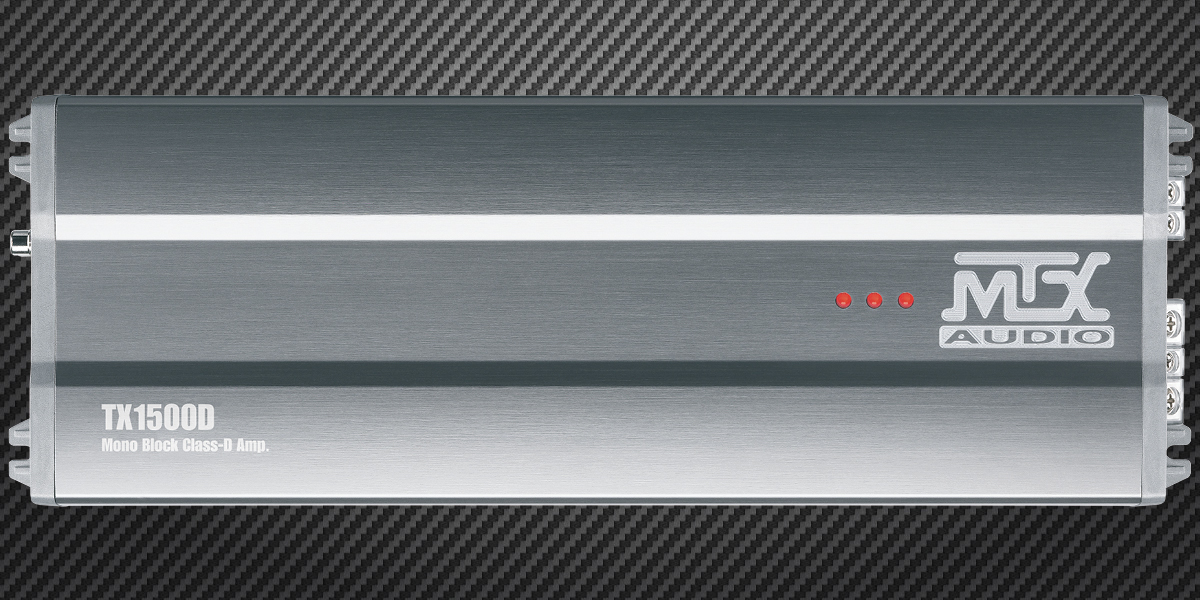

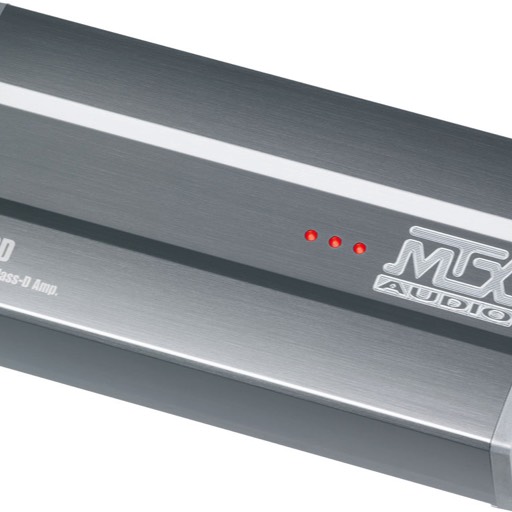

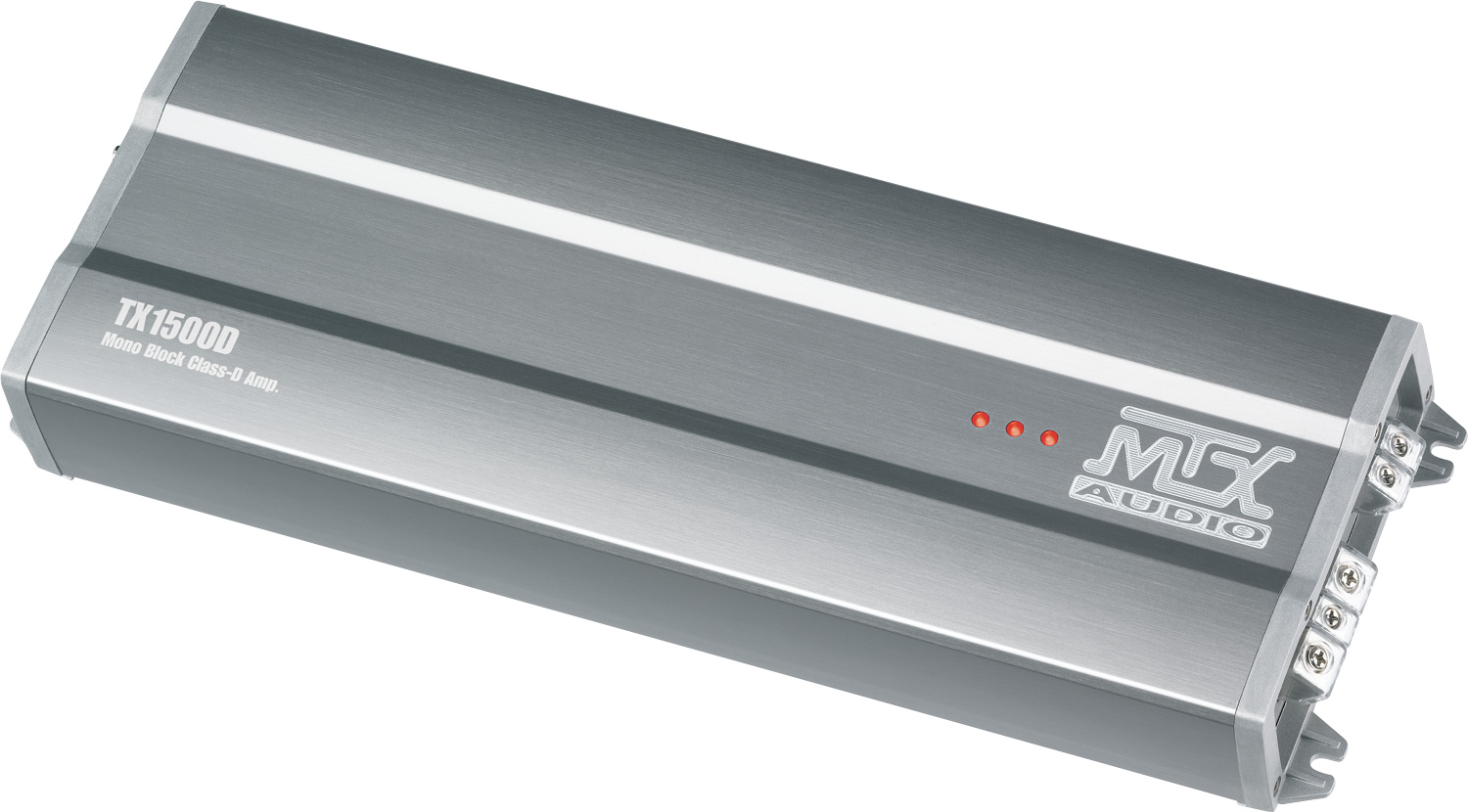

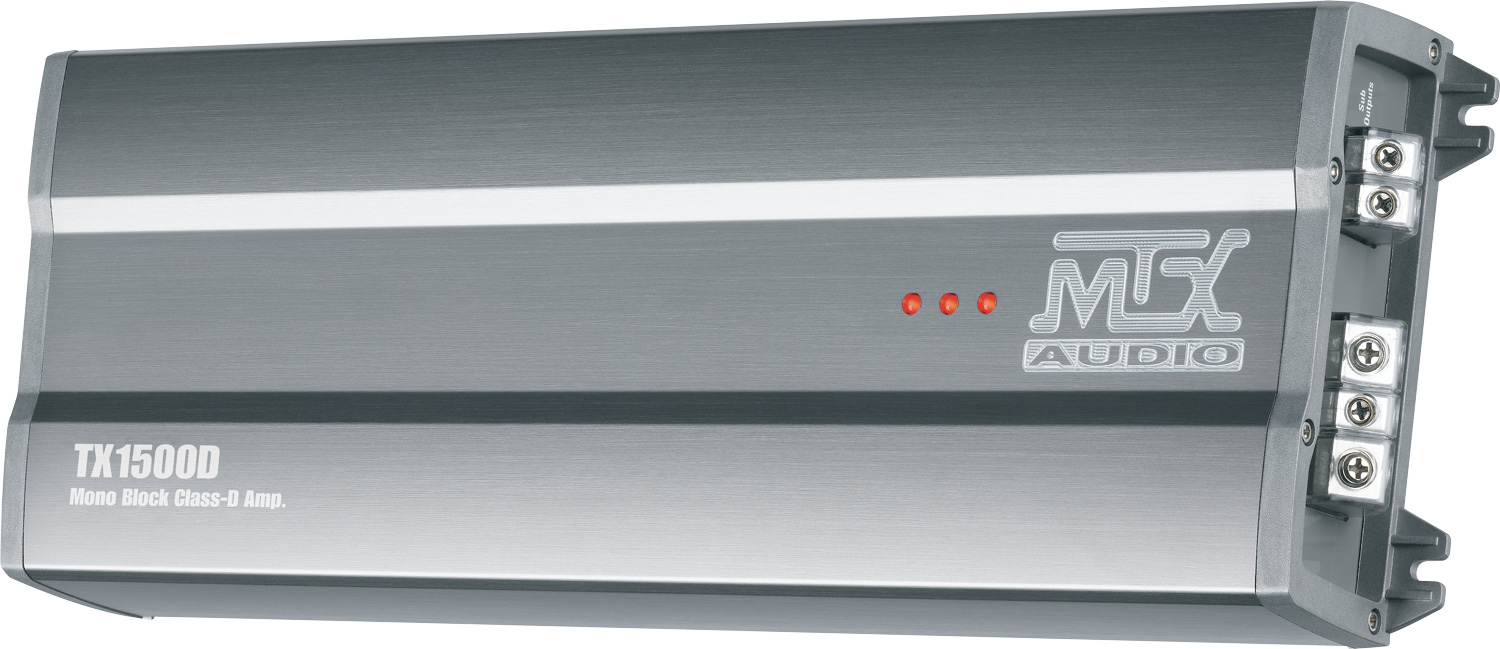

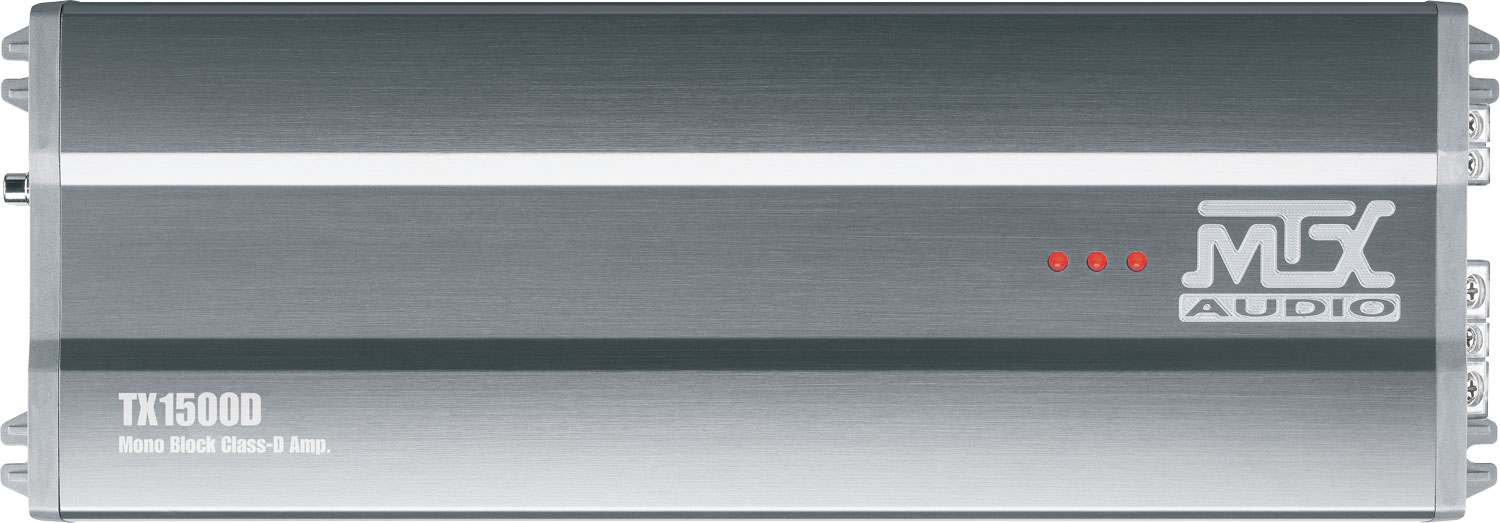

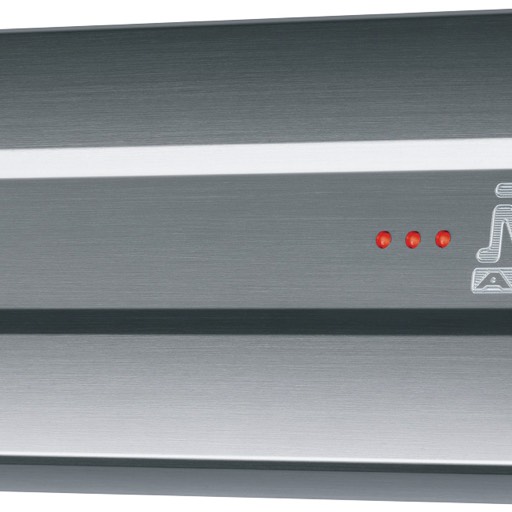

The TX1500D is a Class-D mono amplifier designed specifically for subwoofers, delivering over 1500 Wrms at 1Ω. It’s a technological marvel capable of powering 1 to 4 subwoofers with a total power handling capacity of 1500 Wrms. The build quality is superb, featuring top-of-the-line components (Infineon/IRF for greater reliability and performance), and it’s equipped with a comprehensive active x-over and even a connector for controlling and connecting cooling fans...

• High-efficiency (90%) Class-D amplifier designed specifically for subwoofers
• Optimized for loads from 1Ω to 4Ω
• All-aluminum construction
• EBC remote control included
• Active x-over 24dB/oct filters, variable from 40 to 150Hz
• 25Hz subsonic filter, 24dB/oct
• Thermally regulated connector for external fan
• 21 mm² power terminals
• Bridge mode possible with 2 amplifiers

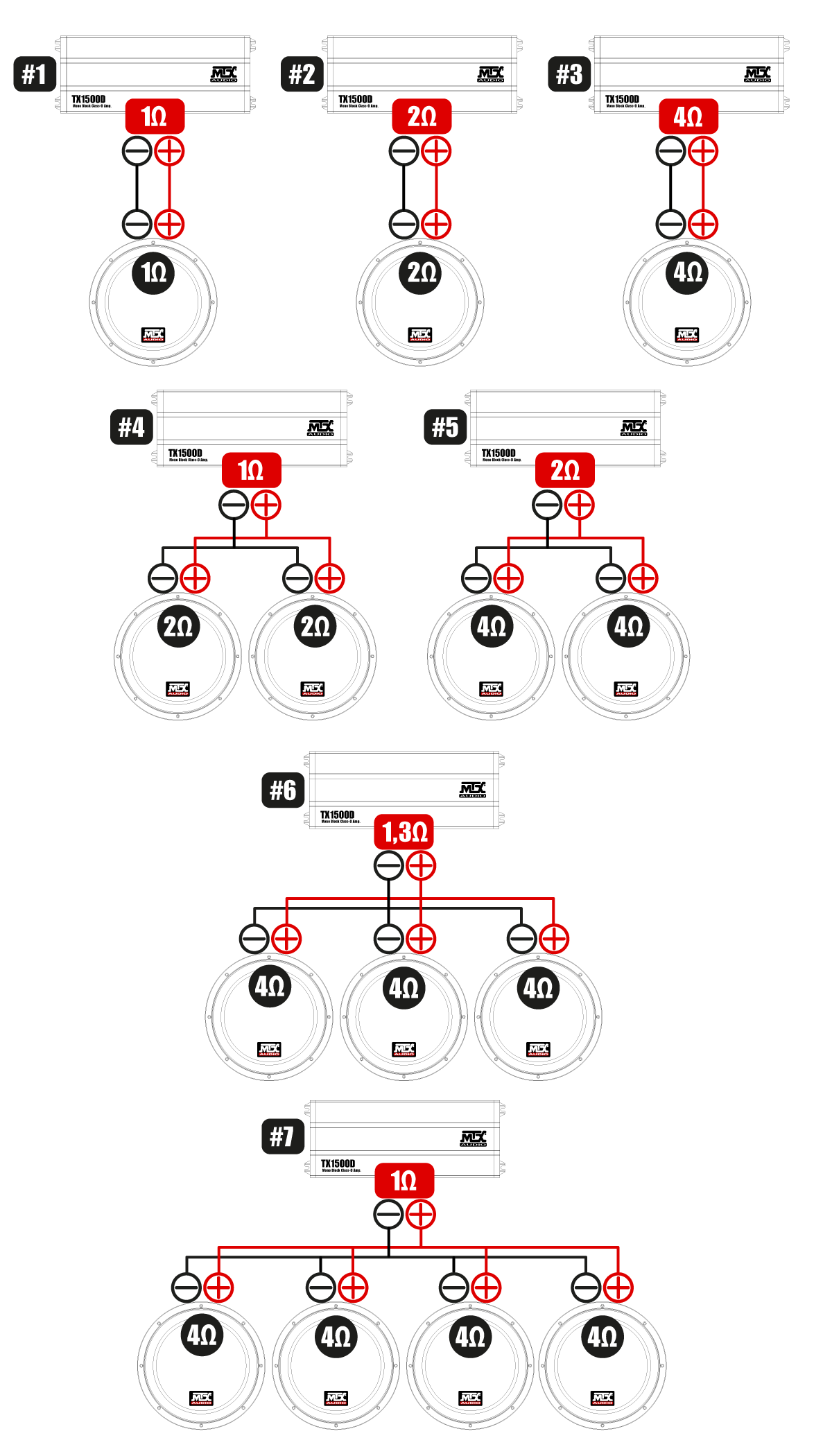

• Optimal use with: 1x TX812, 2x TX812, 1xTX815, 2x TX815

• Class-D mono block 1-channel amplifier
• CEA2006 certified power
  • 1x 1500 watts RMS @1Ω and THD + N ≤1%
  • 1x 1000 watts RMS @2Ω and THD + N ≤1%
  • 1x 600 watts RMS @4Ω and THD + N ≤1%

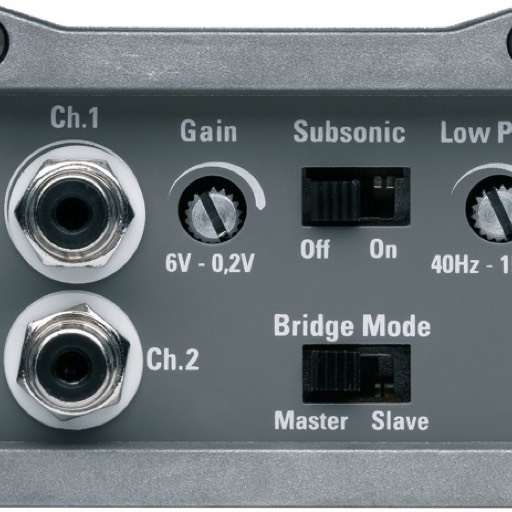

• Active x-over
  • Low Pass (LPF) 24dB/Oct variable from 40Hz to 150Hz
  • Subsonic 24dB/Oct @30Hz
• Signal / Noise ratio (1 watt): >75dB
• THD + Noise (Distortion) (1 watt): ≤0,1%
• Frequency response (± 0,5dB): 10Hz-150Hz
• RCA sensitivity level: 100mV to 6V

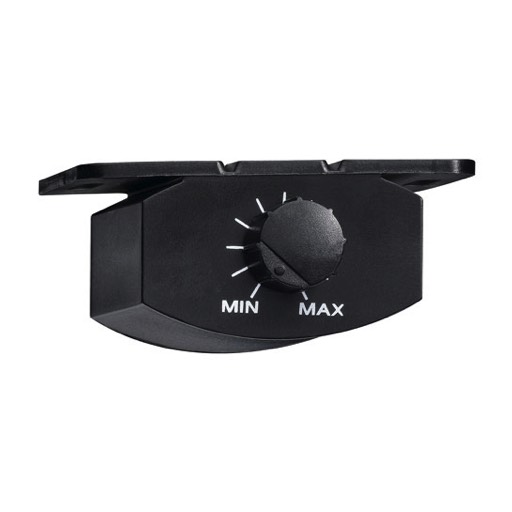

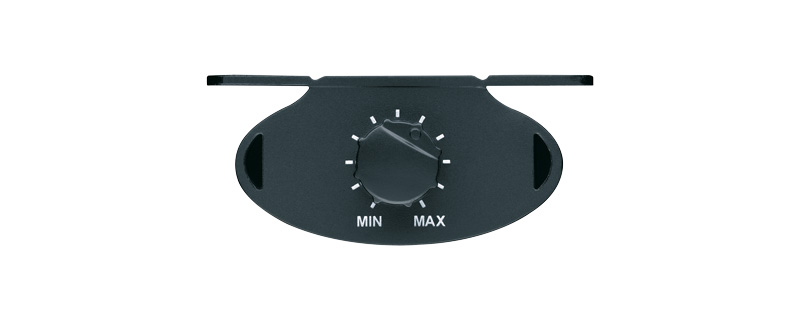

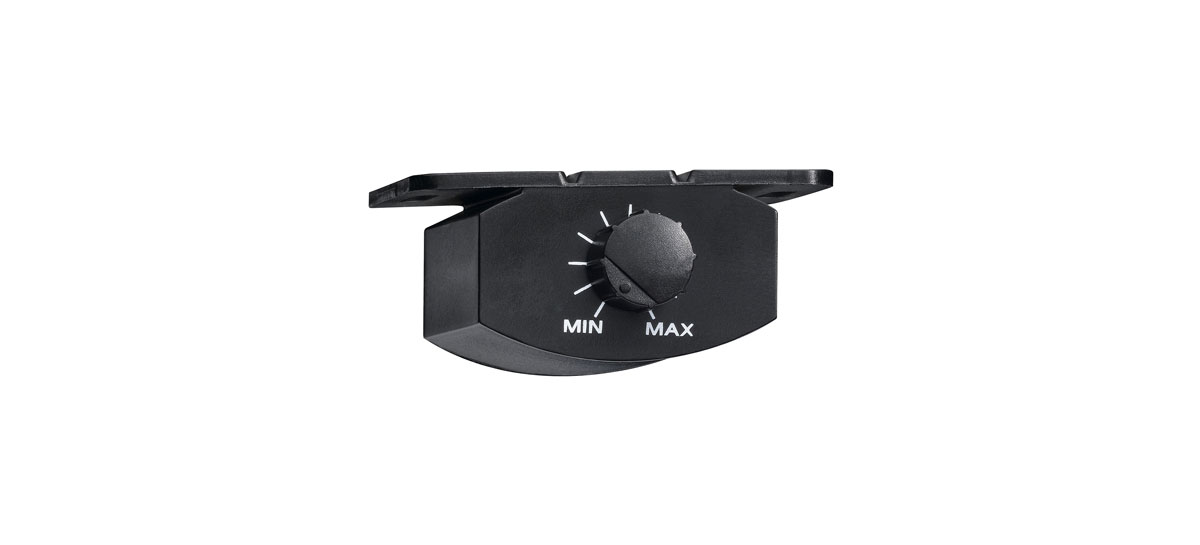

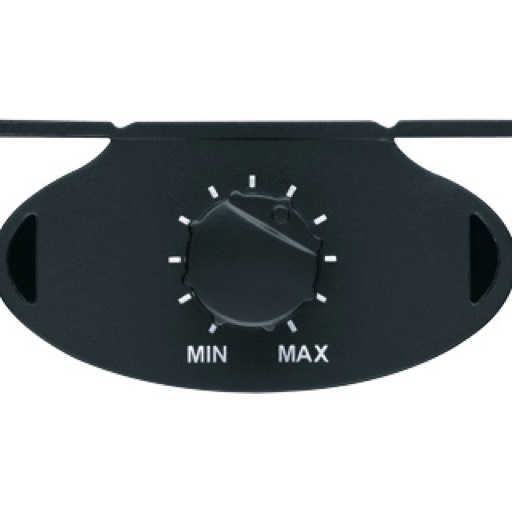

• EBC (External Bass Control) included

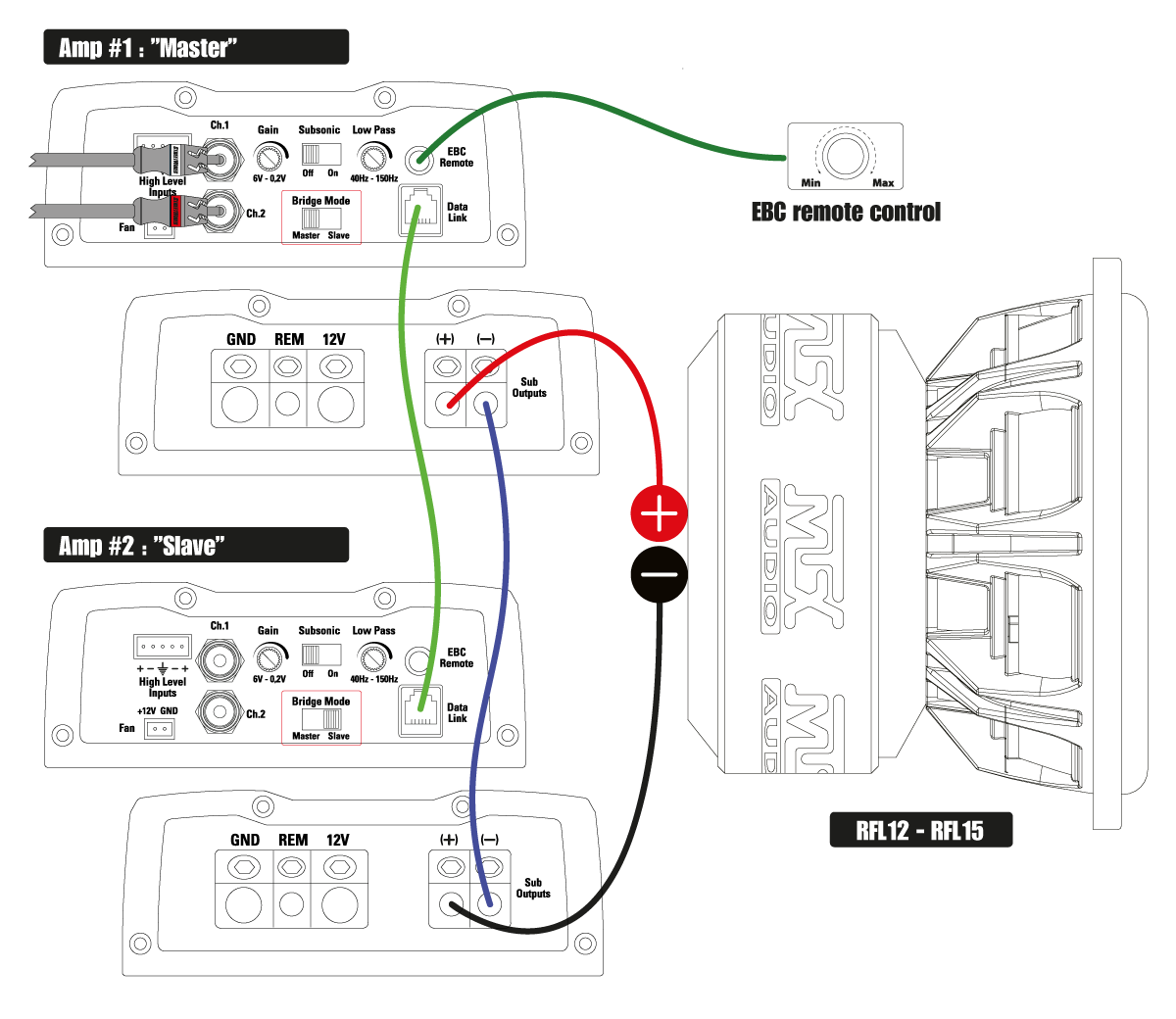

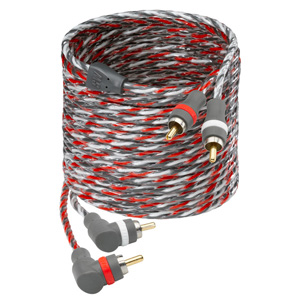

• Bridge mode with two TX1500D (cable included). Output power: 3000Wrms
• Dimensions: 366mm x 133mm x 54mm
• Power connectors: 21mm²

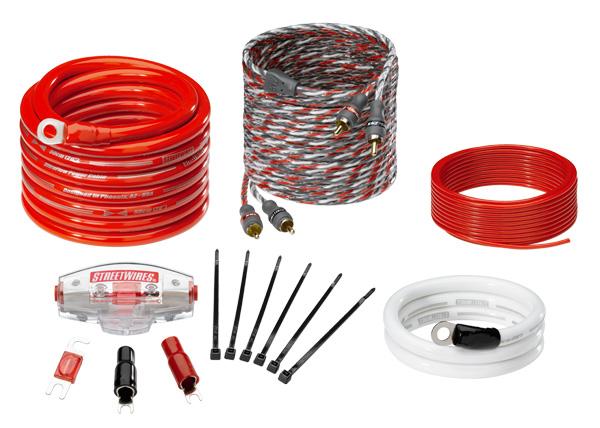

• Recommanded power kit: ZNX21K

The amplifier's power should not exceed that of the speaker. Compare RMS power ratings with RMS power ratings. Do not expose amplifiers to moisture, excessive vibration, or high temperatures.

MTX wants you to enjoy your hearing for a long time. Excessive exposure to loud volumes can damage your hearing. The United States Department of Labor recommends not exceeding the following recommendations.

• 90db : maximum 8 hours/day
• 92dB : maximum 6 hours/day
• 95db : maximum 4 hours/day
• 97db : maximum 3 hours/day
• 100db : maximum 2 hours/day
• 102db : maximum 90 minutes/day
• 105db : maximum 60 minutes/day
• 110db : maximum 30 minutes/day
• 115db : maximum less than 15 minutes/day
• 120db : immediate danger, 0 minute/day
