RT15-04

38cm (15“) 300W RMS Subwoofer with 4Ω (2") Ø50mm single voice coil

Introduction

The 38cm 15“ 250W RMS 4Ω single voice coil MTX RT15-04 subwoofer is full featured: long throw excursion, rubber suspension, polypropylene cone with embossed MTX logo, large magnetic structure, extra large 50mm 2“ voice coil, SPV cooling technology, ALDS technology, etc. Considering the price, it's a feat.

Features

  • Long Throw suspension for low distortion and high power handling
  • One-piece cone with embossed MTX logo for the look
  • Thick sheet metal frame (1mm) for more rigidity
  • Large eXtra magnetic structure (145x30mm) for more power handling
  • 50mm voice coil for more reliability
  • Wires braided in the spider for more reliability
  • Spider eXtra large for more Xmax
  • Push connectors for better contact
  • SPV technology for coil cooling
  • ALDS technology for reliability and for low level detail and high level power handling

Specifications

  • Subwoofer Diameter: 38cm 15"
  • Peak power: 900W
  • RMS power: 300W
  • Sensitivity: 94.7dB/2.83v/1m
  • Impedance: 4Ω
  • Response: 18Hz - 500Hz
  • Depth: 16.3cm

Parameters

  • Fs : 20,0 Hz
  • Re : 3,60 Ω
  • Z : 4 Ω
  • Qms : 6,07
  • Qes : 0,52
  • Qts : 0,48
  • Vas : 223 liters
  • Mms : 263 grams
  • Cms : 231 mm/N
  • Bl : 15,3 N/A
  • Sd : 830 cm2
  • Vd : 1,162 liters
  • Xmax : 14,5 mm
  • Prms : 300 Watts
  • SPL 2,83V/1m : 94,7dB

How to use the RT15-04

Recommended amplifiers: MTX TX2275 TX2450 TX480D


#1. One TX2275 or TX2450 amplifier connect perfectly with one RT15-04 subwoofer (4Ω)


#2. One TX480D amplifier connects perfectly with one RT15-04 subwoofer (4Ω)


#3. One TX6500D amplifiers connects perfectly with two RT15-04 subwoofers (2Ω)


RT15-04 recommended enclosure


  • Vented Enclosure
  • Fb = 26Hz
  • Wood thickness = 25mm
  • External dimensions = 70.0x48.0x43.34cm

  • External volume = 145.6 liters
  • Net internal volume = 106.6 liters
  • Load volume = 90.0 liters

  • Number of vent = 1
  • Vent diameter = 100mm aeroport
  • Vent depth = 23.5cm

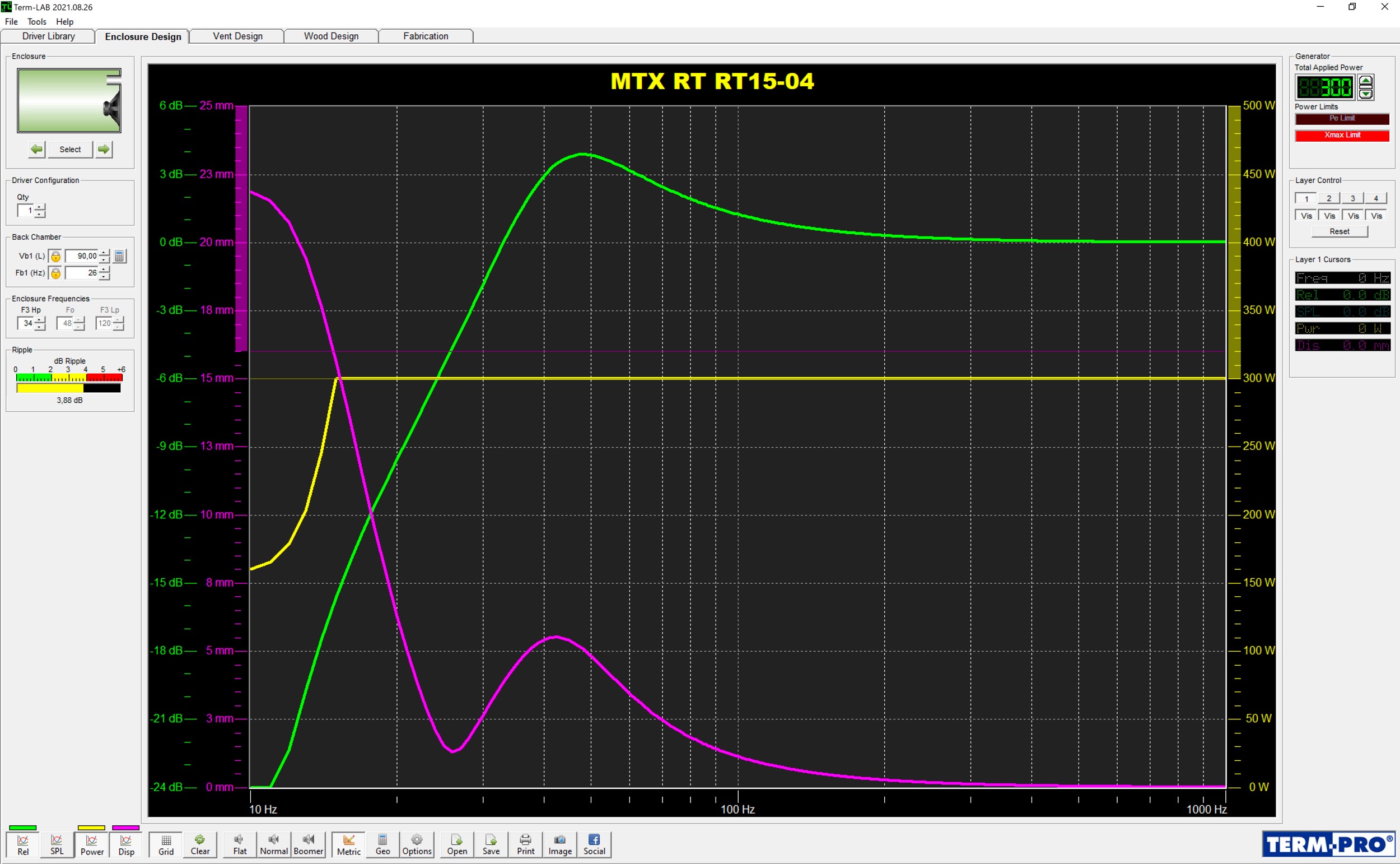

  •  Frequency response, cone displacement

    Frequency response, cone displacement

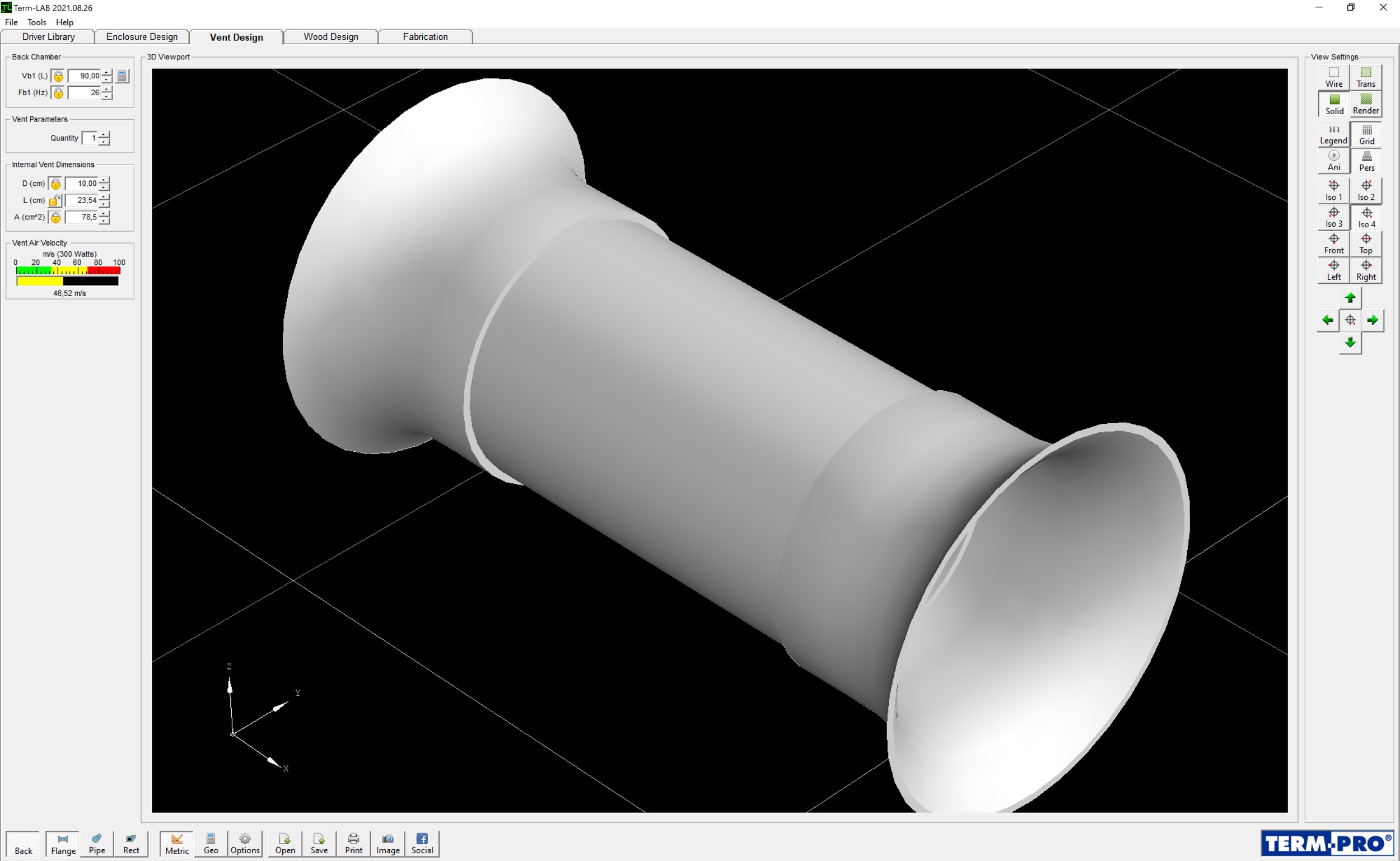

  •  Vent(s) dimensions

    Vent(s) dimensions

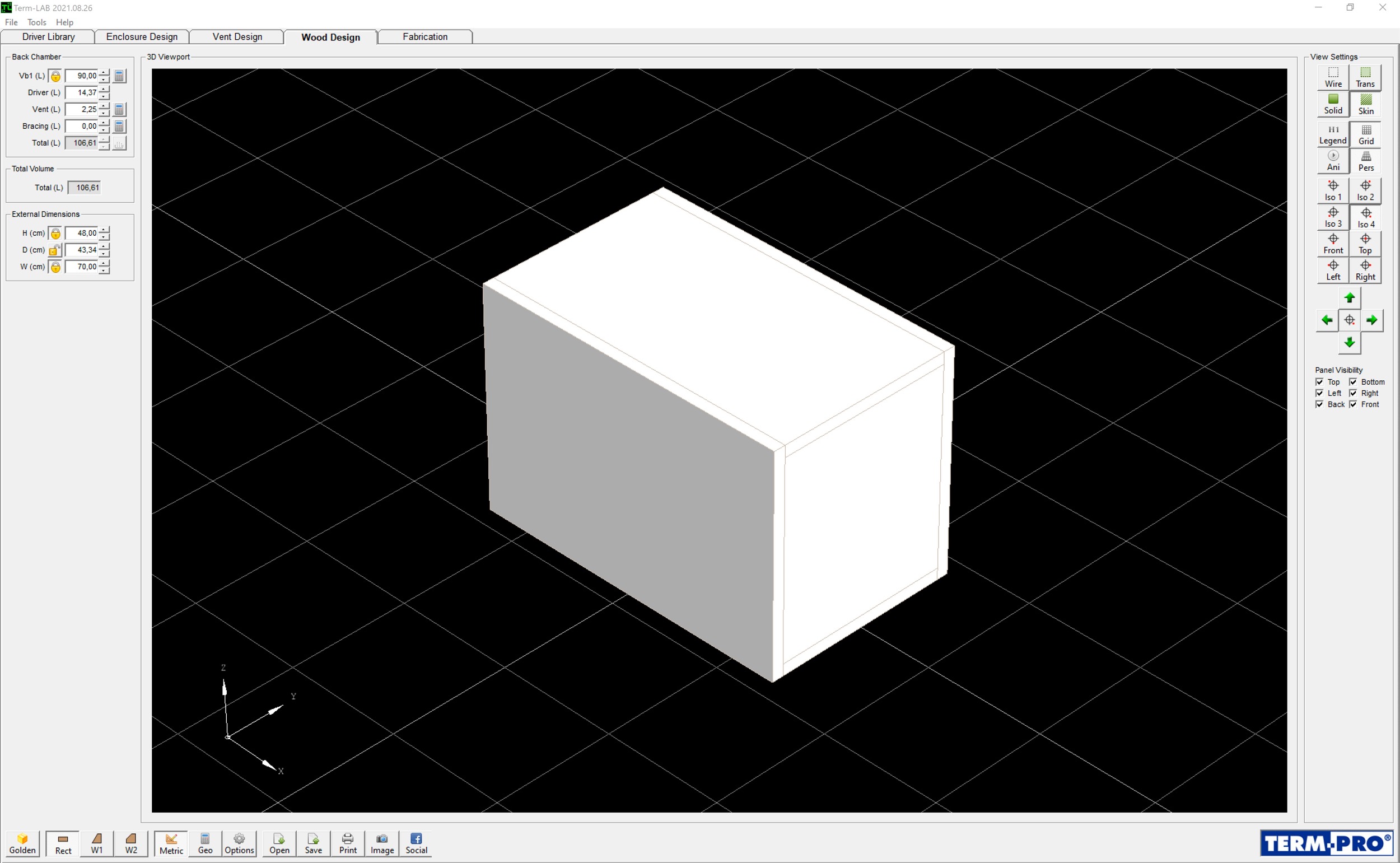

  •  Box dimensions

    Box dimensions

RT15-04 dimensions
