TX615

38cm 15" 800W RMS 2Ω Subwoofer with Ø63mm 2.5" single voice coil and aluminum frame

Introduction

The 38cm 15" 1000W RMS MTX TX615 subwoofer shines with its ability to transform a car into a concert hall or a nightclub, but also for its exceptional value for money. Its serious construction with aluminum frame, large suspension, large voice coil and superb fiberglass cone make it very efficient and competitive.

Features

  • High performance subwoofer
  • Aluminum frame
  • 2.5" high temperature voice coil
  • Voice coil with dual cooling system
  • Extra wide suspension for high excursion
  • High power handling
  • Very good value for money
  • Recommended amplifier: MTX TX6500D

Specifications

  • 38cm 15" subwoofer
  • Peak power: 3000W
  • RMS power: 1000W
  • Sensitivity: 90.5dB/2.83V/1m
  • Impedance: 2Ω (Single coil)
  • Coil diameter: 2.5"
  • BL factor: 17
  • Response: 20Hz - 500Hz
  • Depth: 18.0cm

Parameters

  • Fs : 28 Hz
  • Mms : 332,4 grams
  • Re : 2 Ω
  • Cms : 0,090 mm/N
  • Z : 2 Ω
  • Bl : 17 N/A
  • Qms : 5,54
  • Sd : 838,2 cm2
  • Qes : 0,46
  • Vd : 1,173 liter
  • Qts : 0,43
  • Xmax : 14 mm
  • Vas : 89,8 liters
  • SPL 2,83V/1m : 94,8 dB
  • Prms : 1000 Watts

Warning

MTX wants you to enjoy your hearing for a long time. Excessive exposure to loud volumes can damage your hearing. The United States Department of Labor recommends not exceeding the following recommendations:

  • 90db : maximum 8 hours / day
  • 92dB : maximum 6 hours / day
  • 95db : maximum 4 hours / day
  • 97db : maximum 3 hours / day
  • 100db : maximum 2 hours / day
  • 102db : maximum 90 minutes / day
  • 105db : maximum 60 minutes / day
  • 110db : maximum 30 minutes / day
  • 115db : maximum less than 15 minutes / day
  • 120db : immediate danger, 0 minutes / day

How to use the TX615

Recommended amplifier: MTX TX6500D


#1. One TX6500D amplifier connects perfectly with one TX615 subwoofer (2Ω)


#2. Two TX6500D amplifiers connect perfectly with two TX615 subwoofers (2Ω)

TX615 recommended enclosure


  • Vented Enclosure
  • Fb = 30Hz
  • Wood thickness = 25mm
  • External dimensions = 75.0x48.0x45.24cm

  • External volume = 162.8 liters
  • Net internal volume = 120.5 liters
  • Load volume = 100.0 liters

  • Number of vent = 2
  • Vent diameter = 100mm aeroport
  • Vent depth = 34.0cm

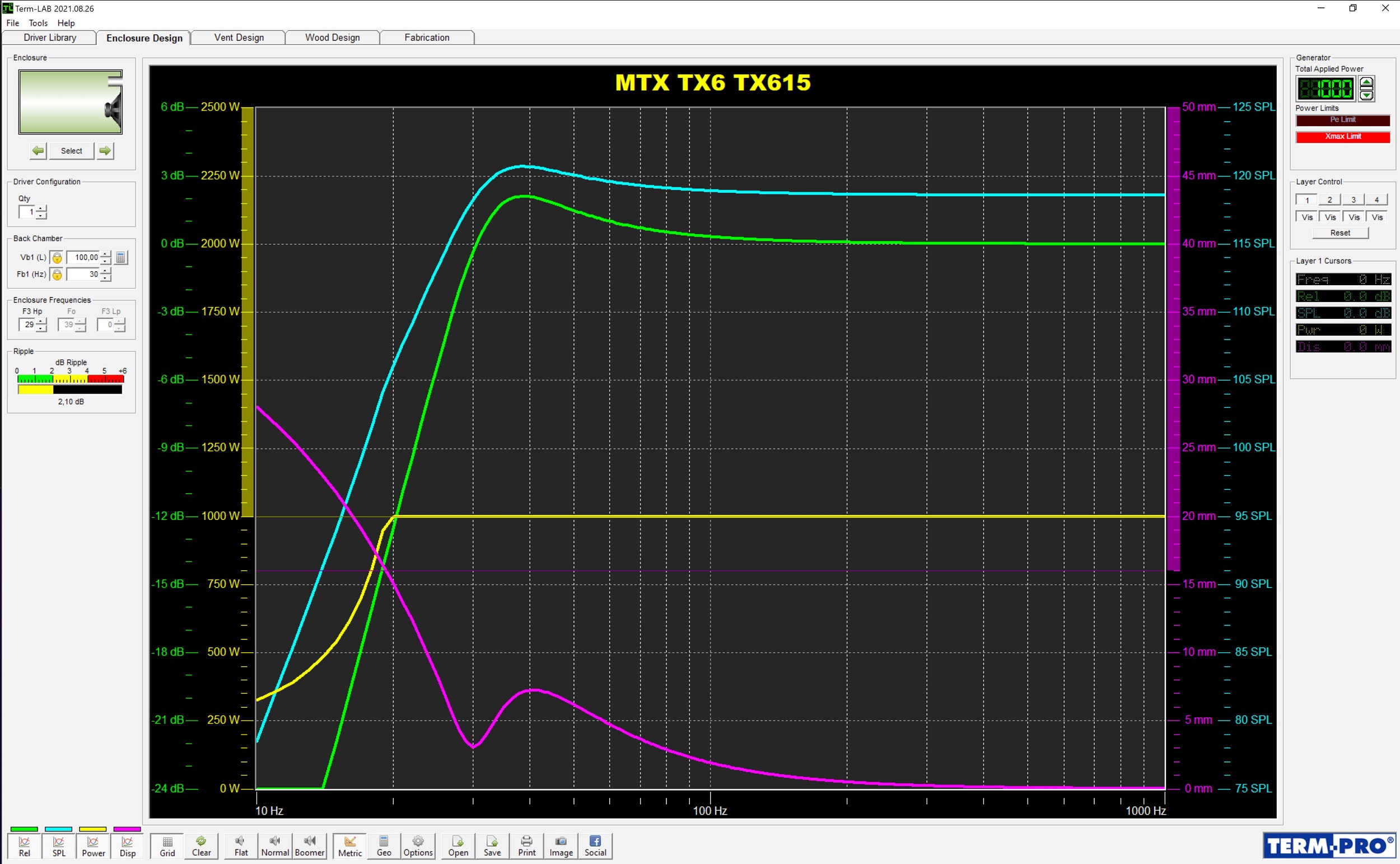

  •  Frequency response, cone displacement

    Frequency response, cone displacement

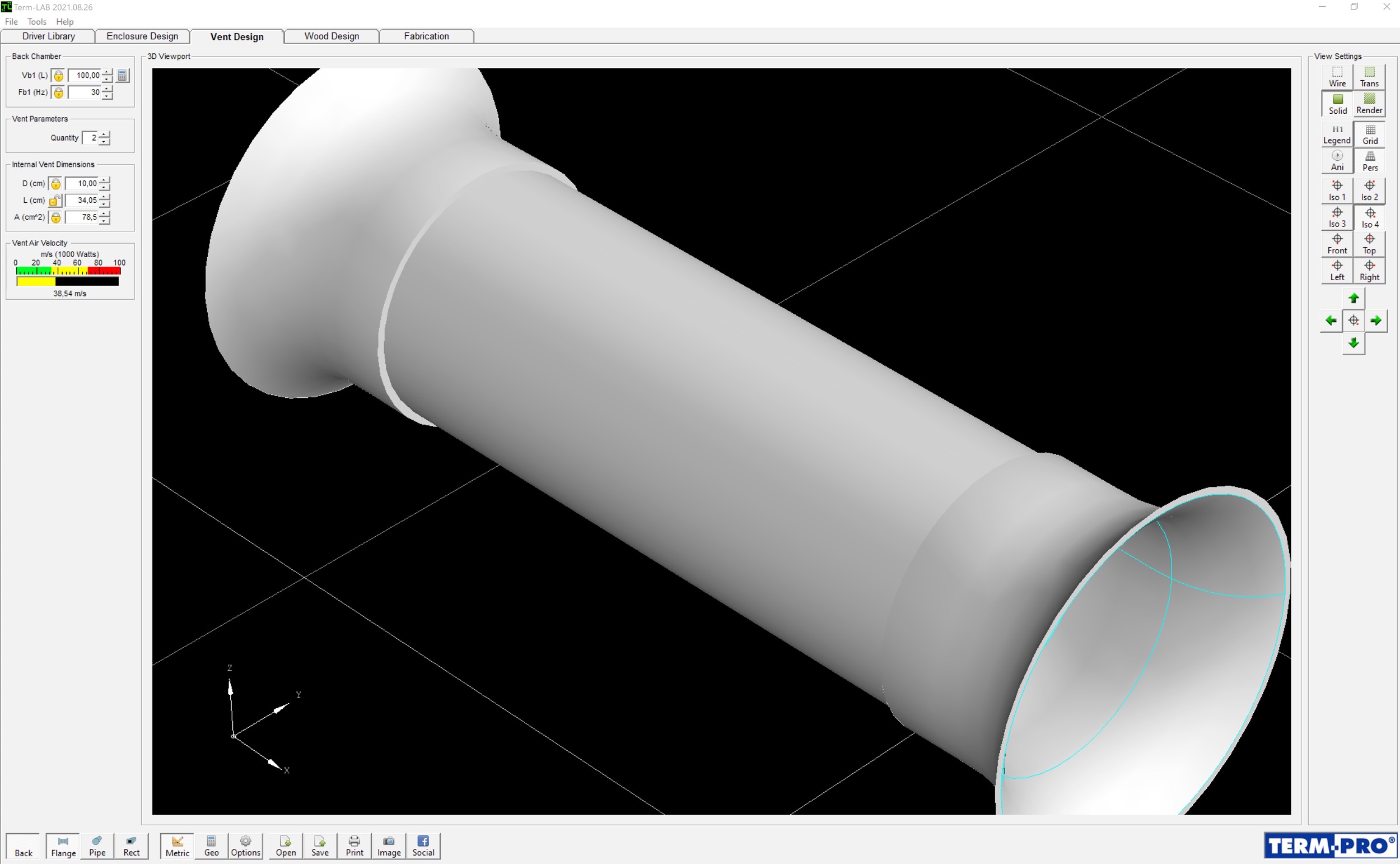

  •  Vent(s) dimensions

    Vent(s) dimensions

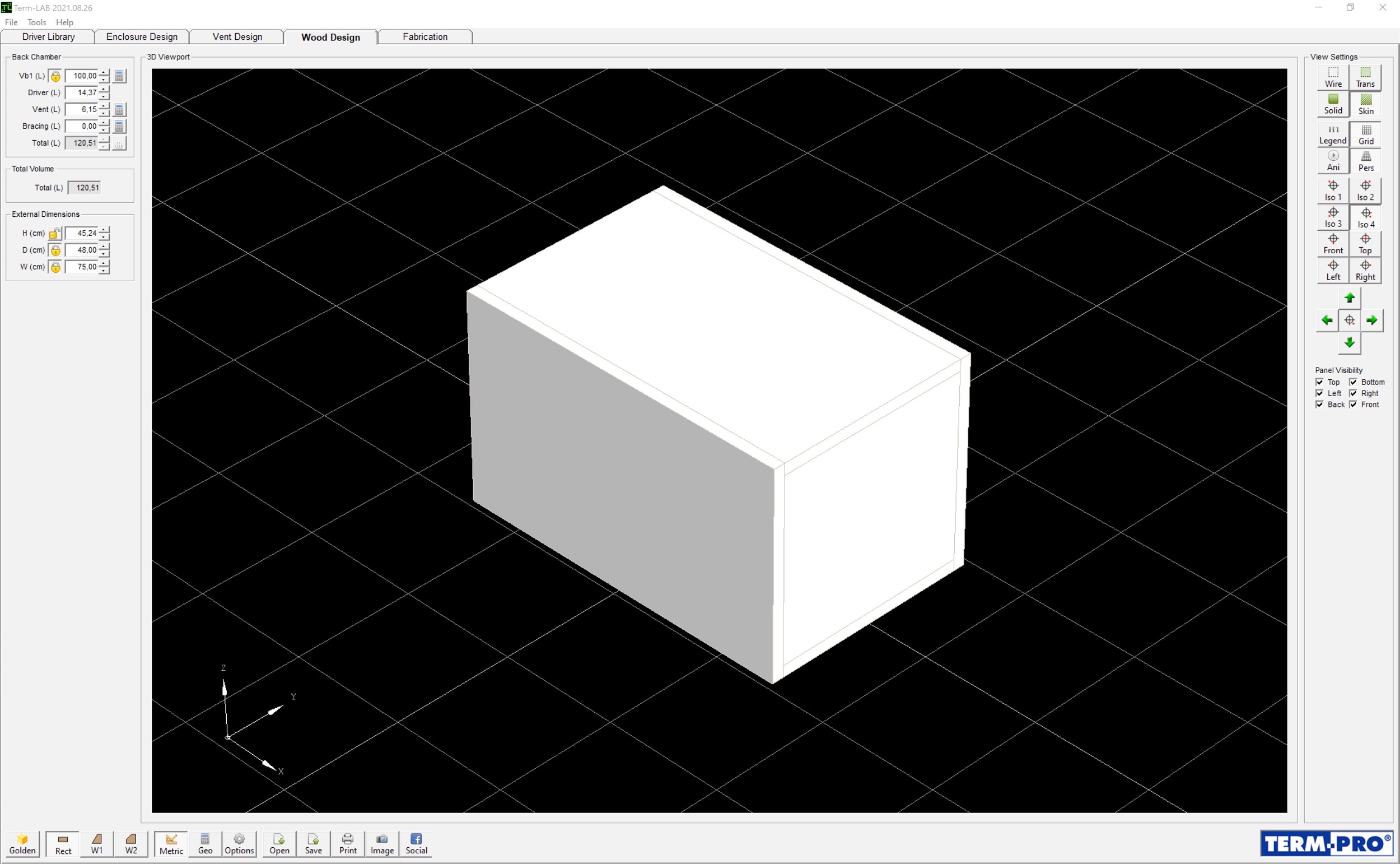

  •  Box dimensions

    Box dimensions

TX615 dimensions
